技术参数
左右滑动表格查看全部参数
多段摆抛光机配置多段摆动抛光头,通过人机界面根据磨具排号选择横梁摆动方式,实现抛光面的高效覆盖。
|
型号 Model |
工作宽度(mm) Working width |
工作厚度(mm) Working thickness |
耗水量约(L/min) Water consumption(about) |
功率(KW) Installation power |
外形尺寸(mm) Overall size |
|
SYZP800-12 |
300~800 |
3~50 |
400 |
156 |
11800x1600x2300 |
|
SYZP800-16 |
300~800 |
3~50 |
500 |
207.5 |
17600x1600x2300 |
|
SYZP1000-12 |
600~1000 |
3~50 |
600 |
156 |
11800x1800x2300 |
|
SYZP1000-16 |
600~1000 |
3~50 |
400 |
207.5 |
17600x1800x2300 |
|
SYZP1600-12 |
800~1600 |
3~50 |
500 |
156 |
11800x2600x2300 |
|
SYZP1600-16 |
800~1600 |
3~50 |
600 |
207.5 |
17600x2600x2300 |
|
SYZP2100-12 |
800~2100 |
3~50 |
500 |
156 |
11800x3100x2300 |
|
SYZP2100-16 |
800~2100 |
3~50 |
600 |
207.5 |
17600x3100x2300 |

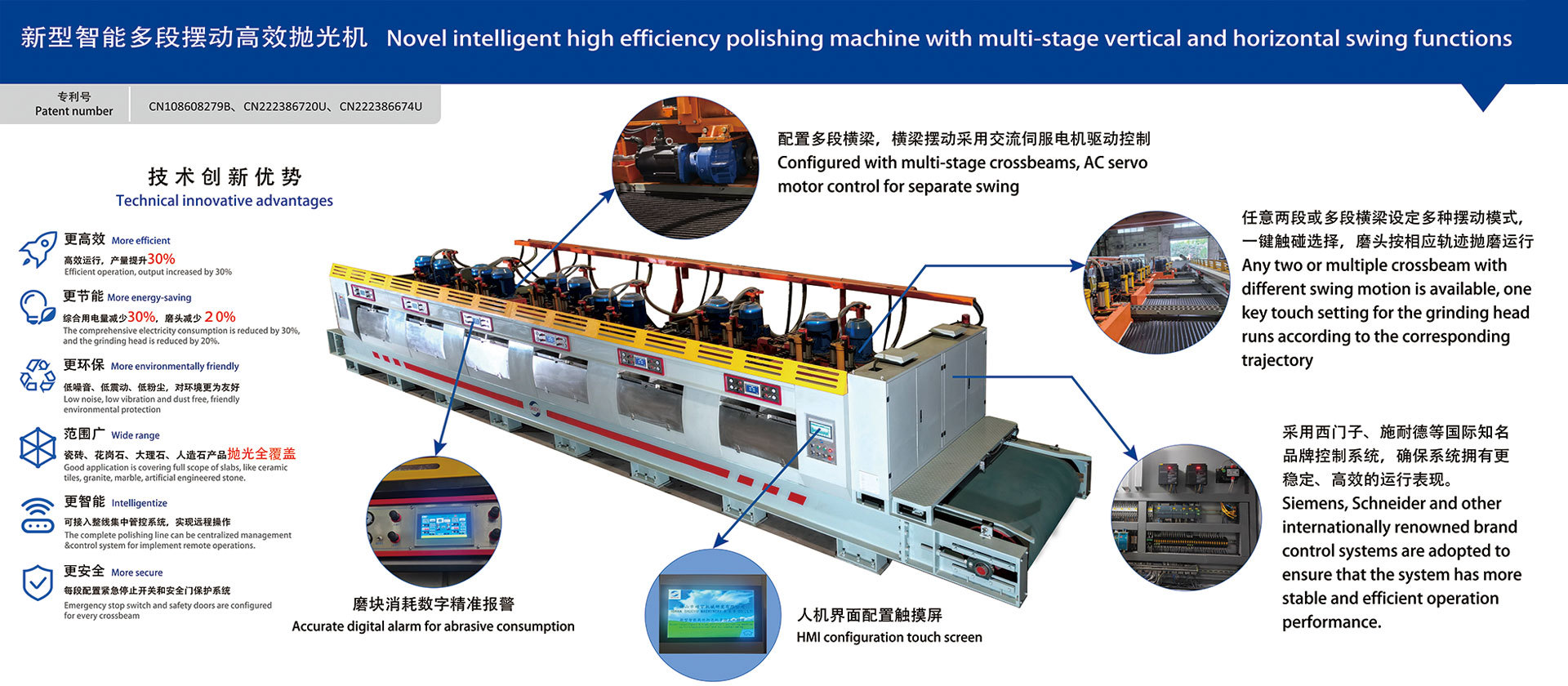

技术创新优势
|
1.人机界面配置触摸屏 |
1. HMI configuration touch screen |
|
2.配置高性能运动控制PLC |
2. Configure with high capacity motion PLC control |
|
3.配置多段横梁，横梁摆动采用交流伺服电机驱动控制 |
3. Configured with multi-stage crossbeams, AC servo motor control for separate swing |
|
4.可接入整线集中管控系统，实现远程操作(可选项) |
4. The complete polishing line can be centralized management &control system for implement remote operations（Optional) |
|
5. 任意两段或多段横梁设定多种摆动模式，一键触碰选择，磨头按相应轨迹抛磨运行; |
5. Any two or multiple crossbeam with different swing motion is available, one key touch setting for the grinding head runs according to the corresponding trajectory |
|
6. 每段配置紧急停止开关和安全门保护系统 |
6. Emergency stop switch and safety doors are configured for every crossbeam |
|
7. 深度解决抛光光度不均、漏抛、黄边等质量问题 |
7.Deeply solve quality defects such as uneven polishing, missing polishing, yellow edges etc. |
|
8. 磨块消耗数字精准报警，节省磨块 |
8.Accurate digital alarm for abrasive consumption, save abrasive |
|
9. 高效运行，磨头减少20%，产量提升30%，综合用电量减少30% |
9.High-efficiency running, the number of heads reduced by 20%,the production quality and capacity improved by 30% and the general electricity consumption reduced by 30% |
|
10.低噪音、低震动、低粉尘，对环境更为友好 |
10.Low noise, low vibration and dust free, friendly environmental protection |
|
11.瓷砖、花岗石、大理石、人造石产品抛光全覆盖 |
11. Good application is covering full scope of slabs, like ceramic tiles, granite, marble, artificial engineered stone. |
